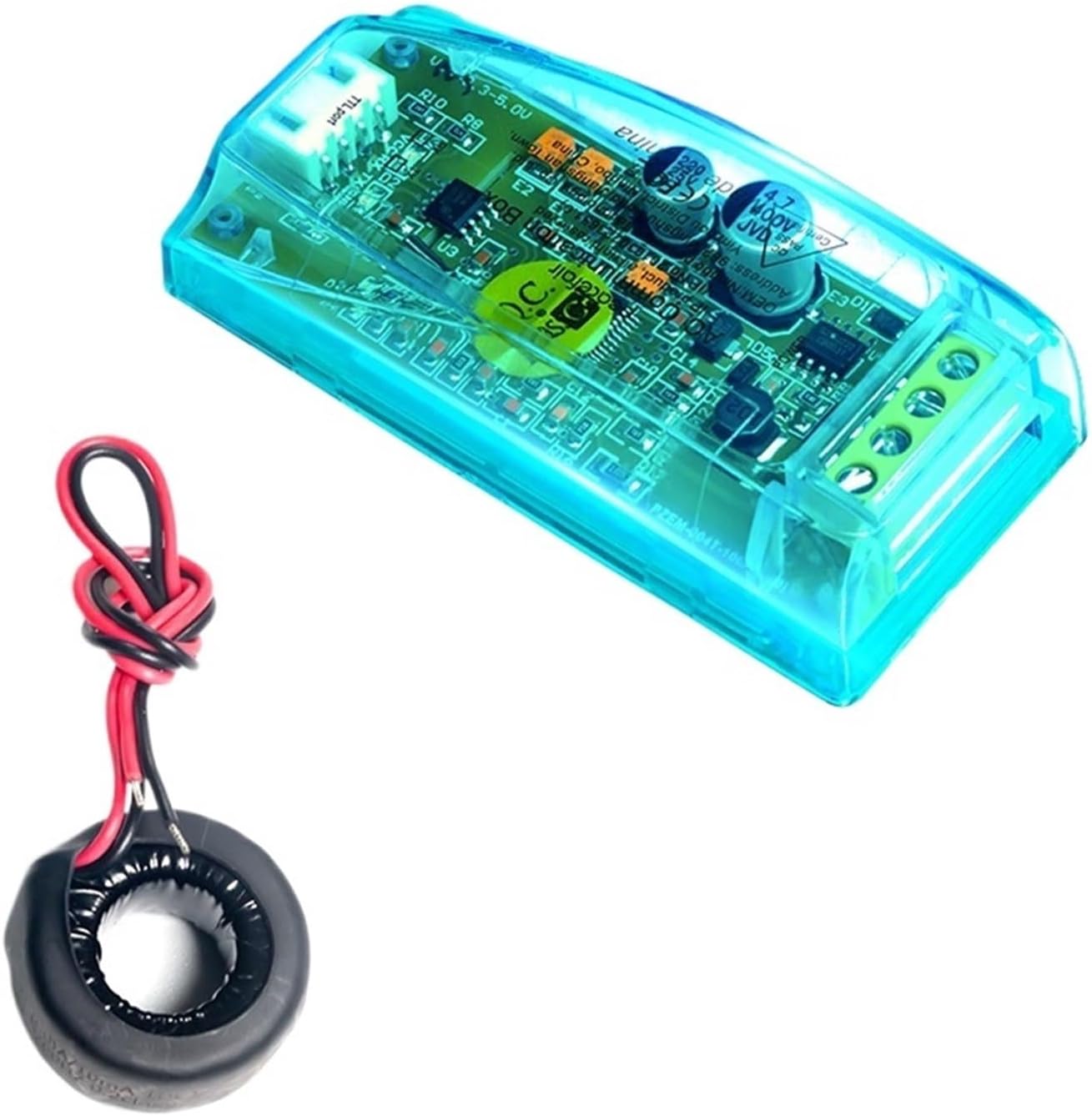

PZEM-004T Single-phase power meter (kilowatt-hour) 220V 32A/63A/100A(63A coil CT)

Meter Sockets1. Operating voltage: 80～260VAC2. Test voltage: 80～260VAC3. Rated power: 100A/22000W4. Operating frequency: 45-65Hz5. Measurement accuracy: Class 1.0FunctionVoltage1.1.1 Measurement range: 80-260V1.1.2 Resolution: 0.1V1.1.3 Measurement accuracy: 0.5%1.2 Current1.2.1 Measurement range: 0-10A (PZEM-004T-10A); 0-100A (PZEM-004T-100A)1.2.2 Initial measurement current: 0.01A (PZEM-004T-10A); 0.02A (PZEM-004T-100A)1.2.3 Resolution: 0.001A1.2.4 Measurement accuracy: 0.5%1.3 Active power1.3.1 Measurement range: 0-2.3kW (PZEM-004T-10A); 0-23kW (PZEM-004T-100A)1.3.2 Initial measurement power: 0.4W1.3.3 Resolution: 0.1W1.3.4 Display Format:For loads less than 1000W, display one decimal place, e.g., 999.9W.1000W, display only the integer part, e.g., 1000W1.3.5 Measurement accuracy: 0.5%1.4 Power Factor1.4.1 Measurement range: 0.00-1.001.4.2 Resolution: 0.011.4.3 Measurement accuracy: 1%1.5 frequency1.5.1 Measurement range: 45Hz-65Hz1.5.2 Resolution: 0.1Hz1.5.3 Measurement accuracy: 0.5%1.6 Active electrical energy1.6.1 Measurement range: 0-9999.99kWh1.6.2 Resolution: 1Wh1.6.3 Measurement accuracy: 0.5%1.6.4 Display Format:<;10kWh, the unit displayed is Wh (1kWh=1000Wh), such as: 9999Wh10kWh, displayed in kWh, e.g., 9999.99kWh1.6.5 Reset energy: Software reset.1.7 Overpower AlarmAn active power threshold can be set; an alarm will be triggered when the measured active power exceeds the threshold.1.8 Communication InterfaceRS485 interface1. Communication Protocol1.1 Physical Layer ProtocolThe physical layer uses a UART to TTL communication interface.The baud rate is 9600, with 8 data bits, 1 stop bit, and no parity check.1x PZEM-004TAC Voltmeter/Ammeter (with casing)1x CT Battery included: No Size: 7.8 cm * 3.7 cmOperating temperature: -10 to 60 degrees CelsiusOutput voltage: 220VAccuracy class: 1.0Measurement energy range: 100A/22000WNumber of phases: Single phaseModel: PZEM-004TMaximum operating current: 100A - 119ARated voltage: 220VPower supply: Alternating currentDisplay type: Number onlyDIY supplies: electrical appliancesPlace of origin: Mainland ChinaCertifications: CE, FCCCertificates: CE, FCCAttachment: Coil CT/Split CTCommunication port: TTLCurrent range: 32A/63A/100AVoltage range: 80-260VPower range: 0-22kWPower factor: 0-1Frequency: 45-65Hz
