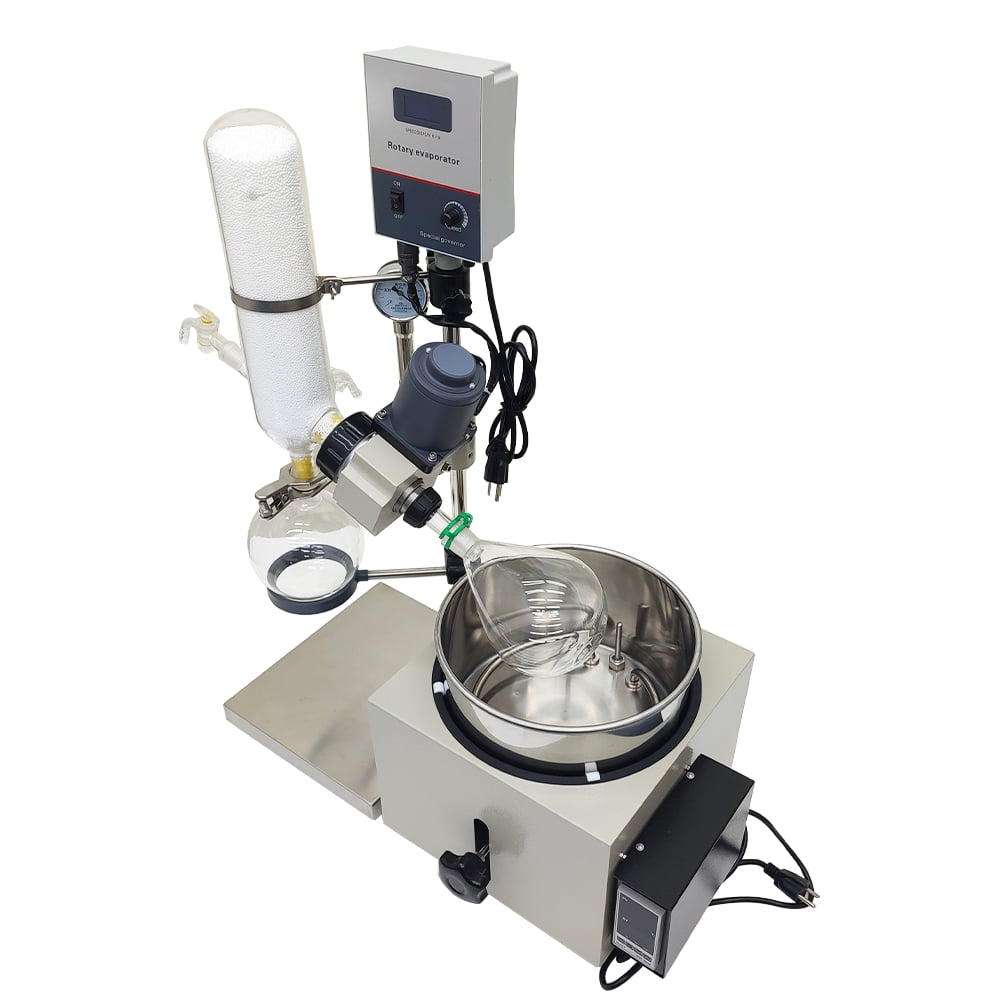

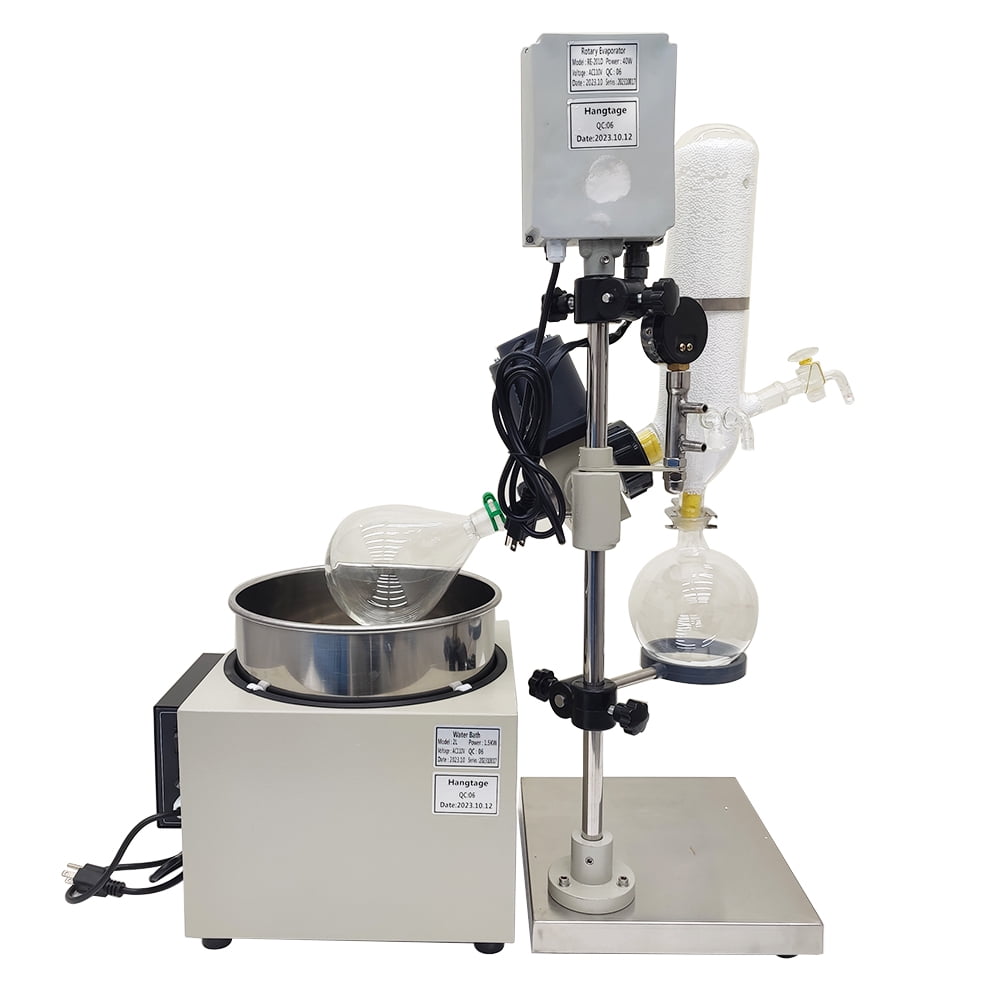

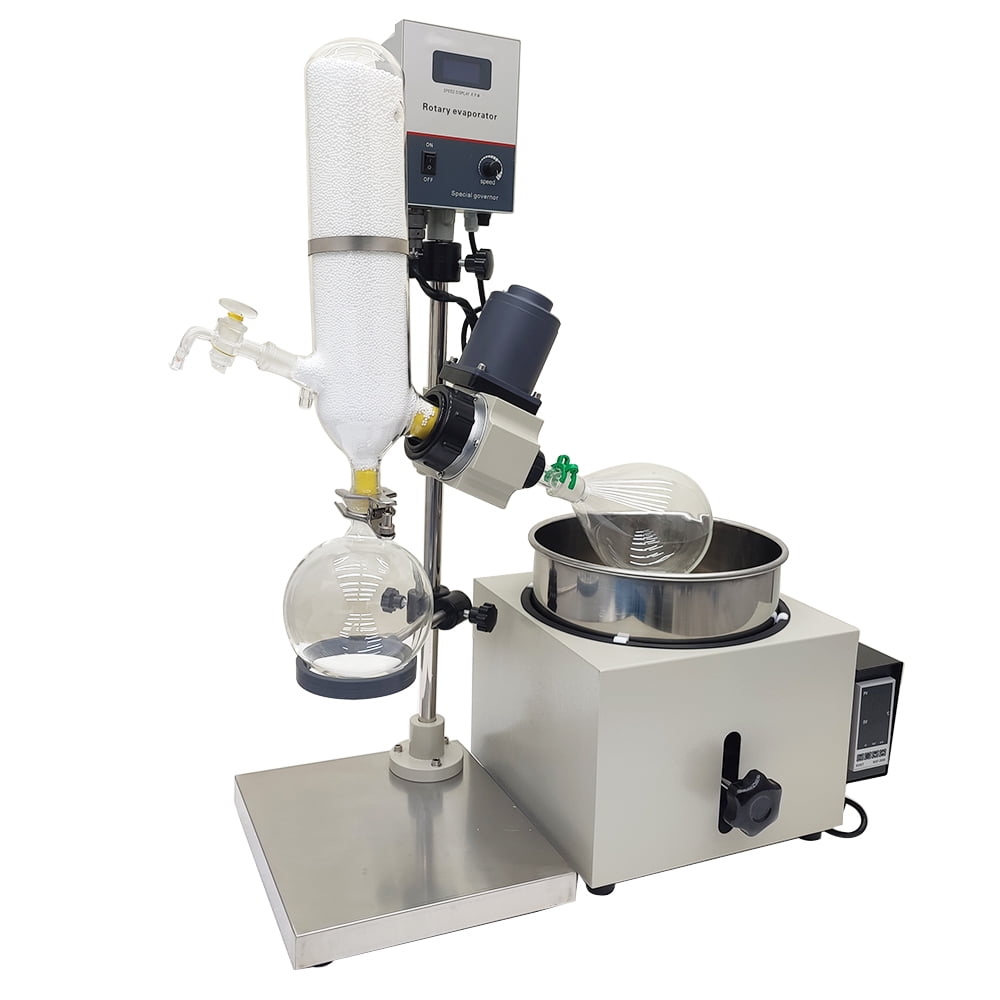

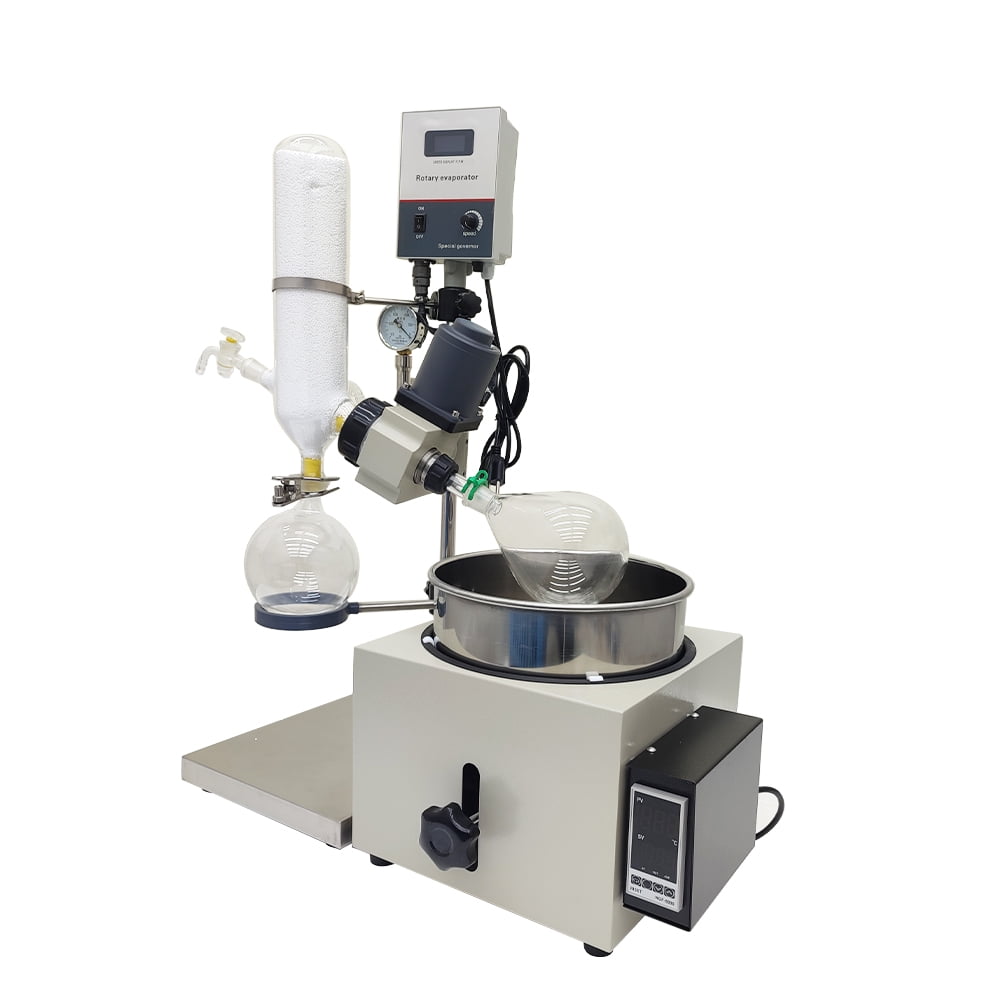

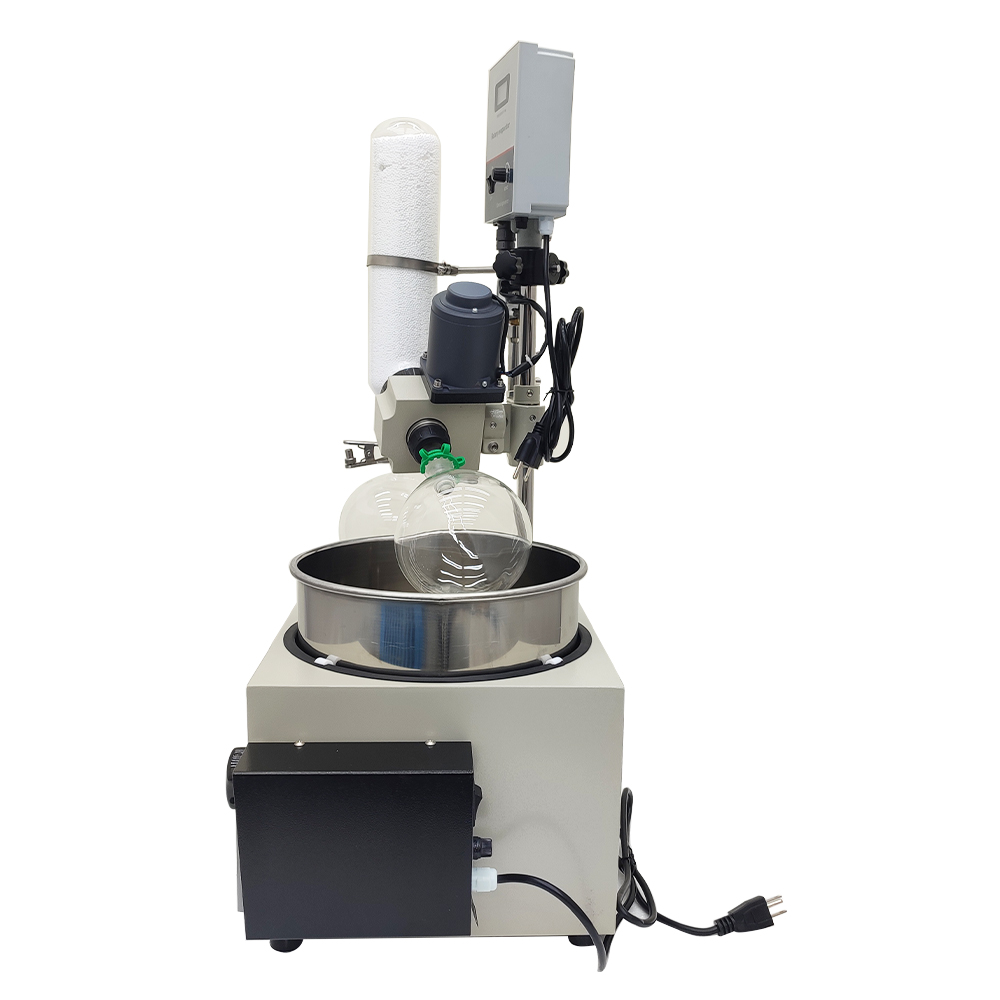

2L Lab Rotary Evaporator Manual Lifting Evaporator with 15L Water Circulating Vacuum Pump 110V

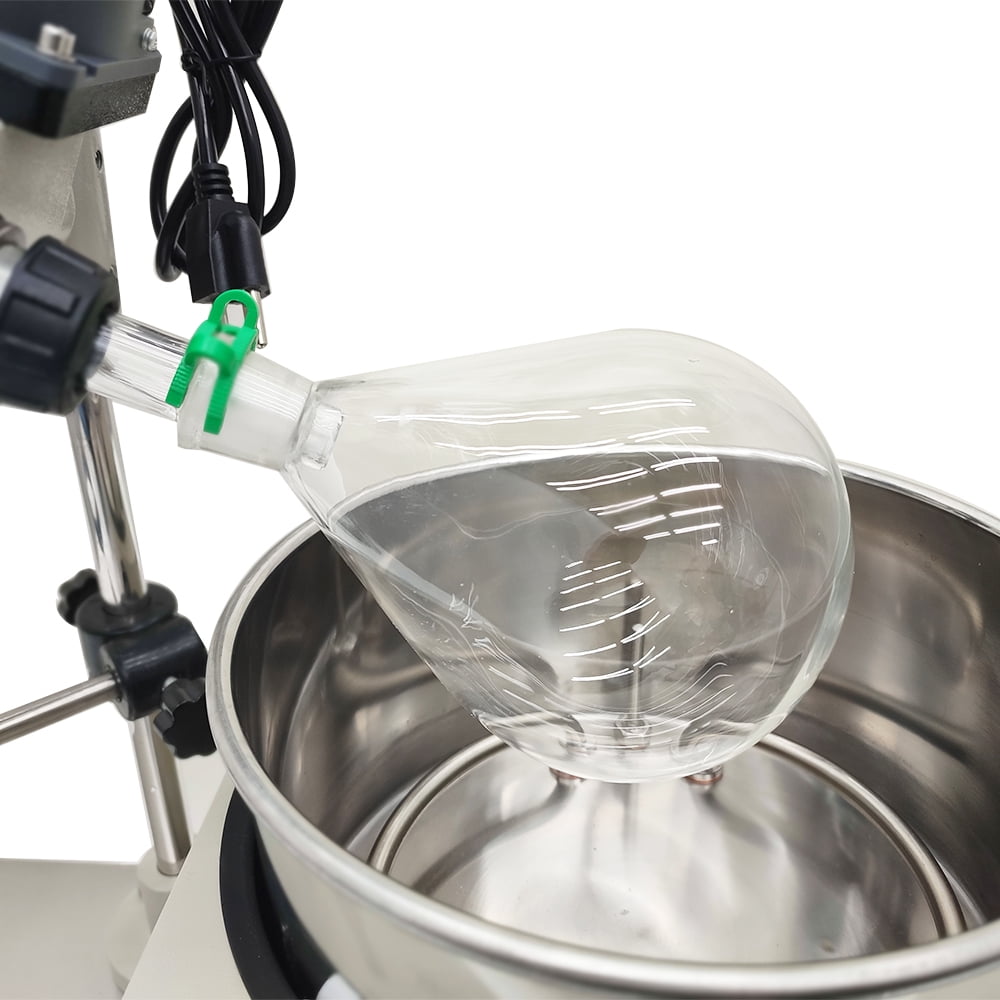

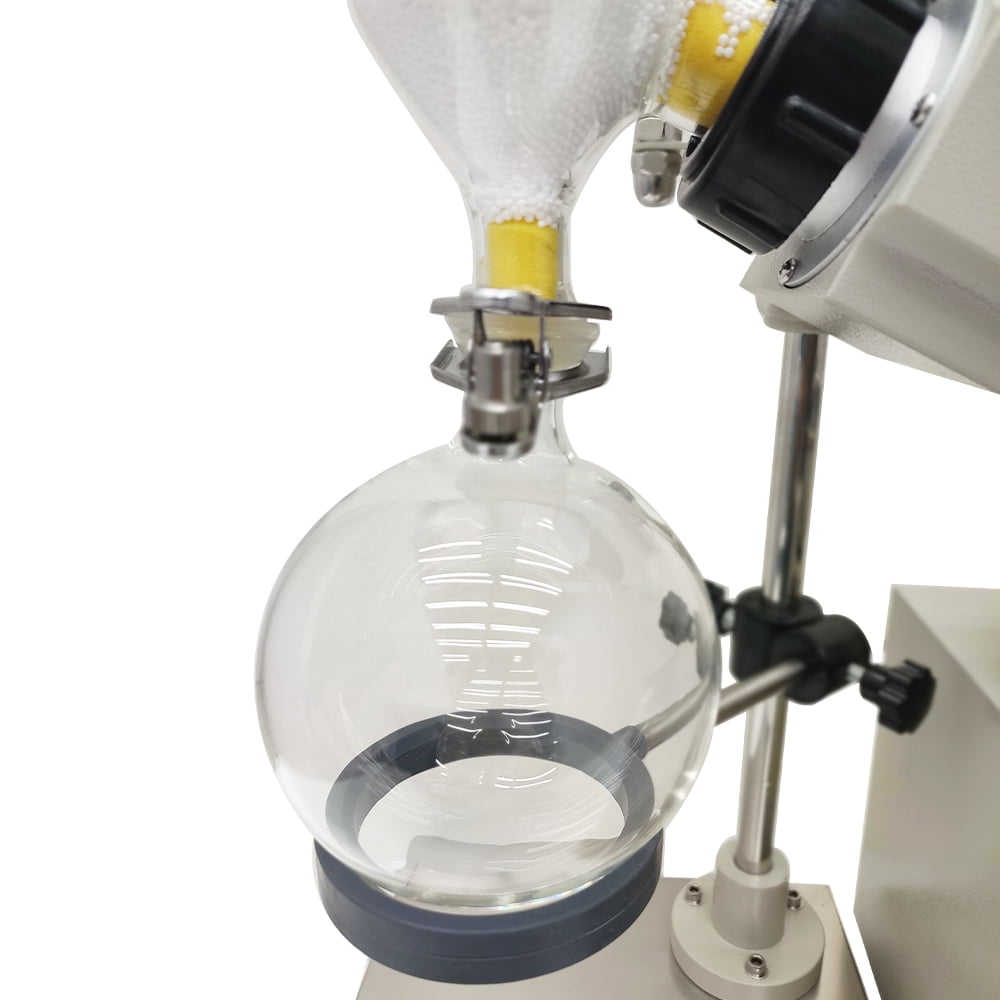

<p><b>Description:</b><br>A rotary evaporator is a laboratory device and is used for the continuous distillation of large quantities of volatile solvents under reduced pressure. It is equipped with a large-capacity and large-caliber rotary evaporation bottle, and the bottle is placed in a water bath and rotated to be heated, so that the solution diffuses and efficiently evaporates. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle (vacuum) pump, circulating cooler, constant temperature cycle and low temperature coolant circulation pump and other ancillary components of the system. </p> <p><b>Product Parameters:</b><br>1. Capacity of evaporating flask: 1L<br>2. Capacity of collecting flask: 1L<br>3. Vacuum: -0.098Mpa<br>4. Rotating speed: 0 - 120 R/min<br>5. Evaporating speed: ≥1.5L/H20<br>6. Temperature range: Room temperature-99℃<br>7. Motor power: 40W<br>8. Water bathing power: 1KW<br>9. Voltage: 110V </p> <p><b>Foam removal method:</b><br>1. Condenser bottle mouth is downward to let the foam out by itself.<br>2. Do not shake the condenser when a small amount of foam is left in the condenser. Shaking is prone to damage the glass tube in the condenser. Acidic liquid can be poured into the condenser to dissolve the foam. </p> <p><b>Item Included(220490):</b><br>110V 2L Rotary Evaporator Lab Equipment</p>

• 2L Rotary Evaporator consists of a group of reliable micro motor and integrated circuit control device. Under the effect of the electronic speed regulation, it can be rotated stably within the range of 10-120rpm, reaching the high evaporating efficiency & high recovery.
• Lab Evaporator adopts Modular design, easy to connect to other appliance. Easy to install and disassemble, easy to operate & maintain. The rotating shaft using high borosilicate glass, the joints using fluorine rubber framework oil seal to seal, high tightness and better effect.

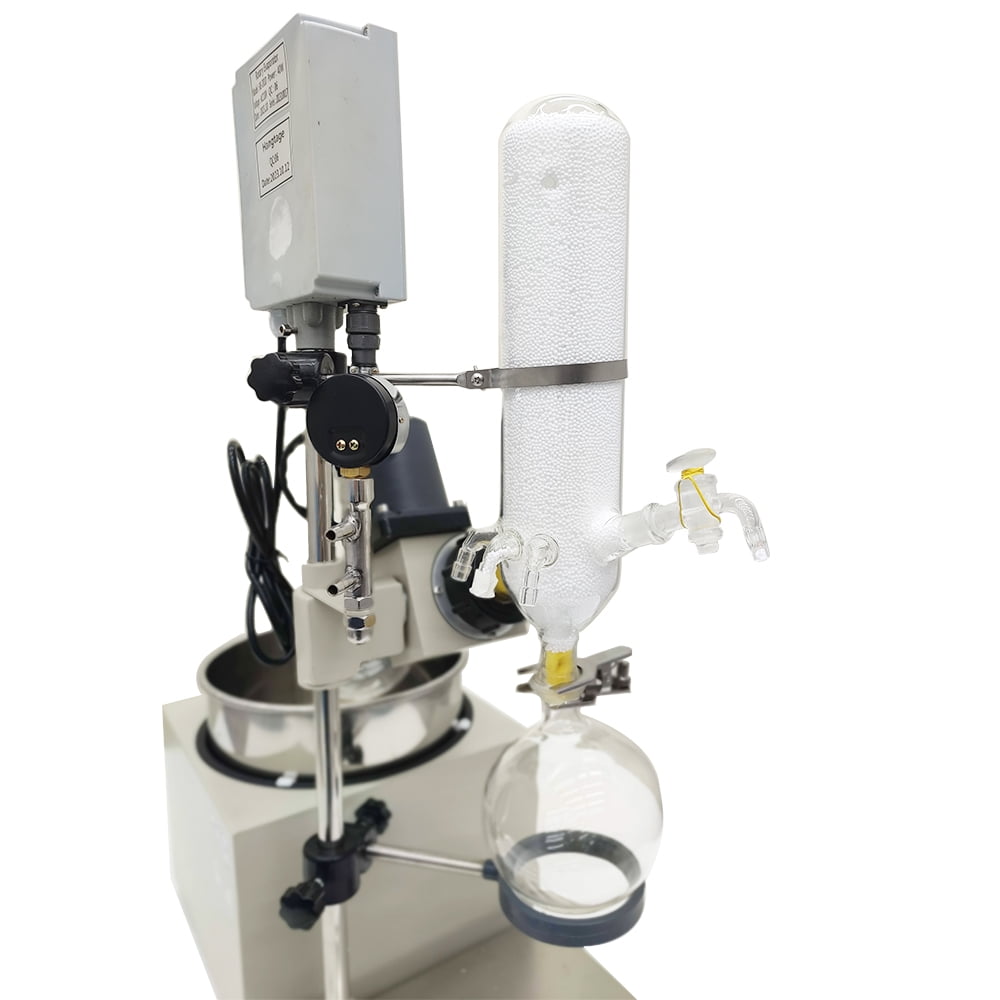

• Two kinds of condenser structures for choosing, one adopts double line convection principle, used for inorganic solvent evaporation. The other is a single line container with a interlayer cooled by water and dry ice, used or evaporating the organic solvent. Using vertical condenser to save space.

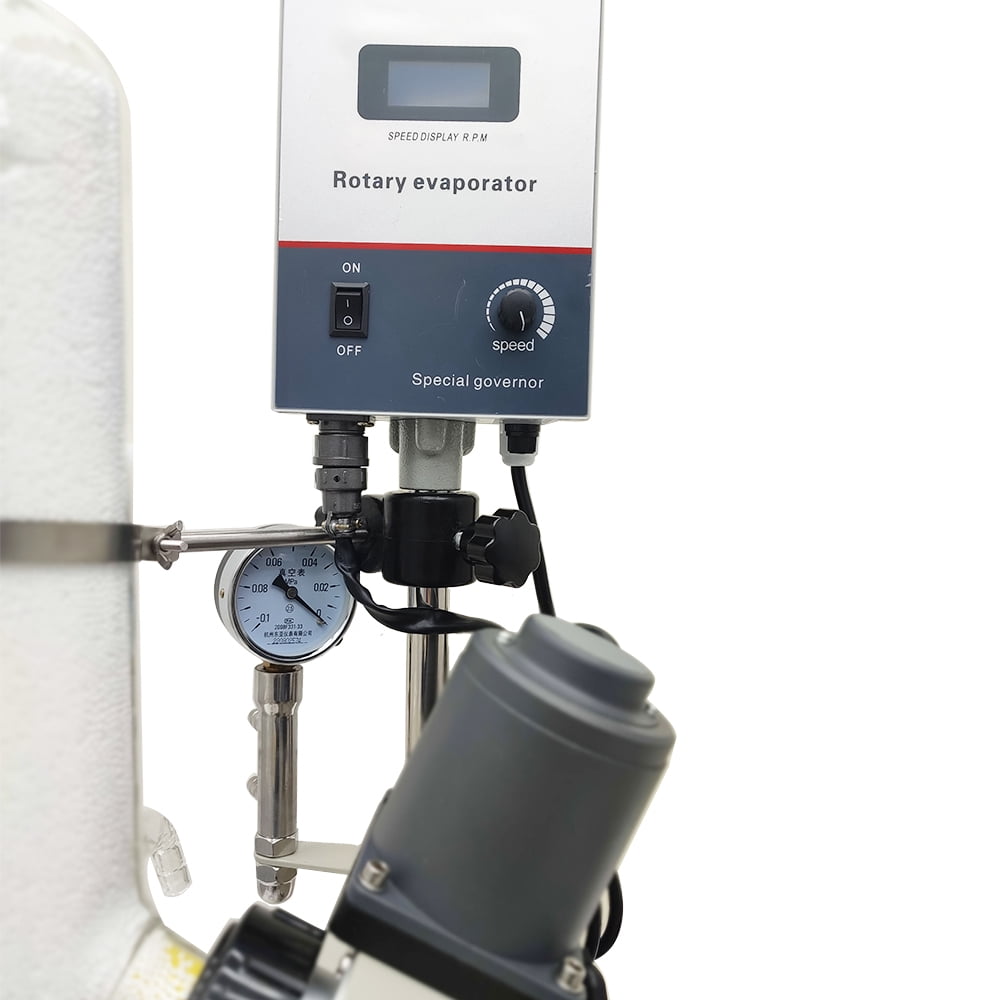

• The motor of this Evaporation Apparatus is equipped with Gear reducer, which is 3 times of the original motor torque, high power and has real-time speed digital display, and this equipment is also equipped with overload protection function to avoid overload of the governor caused by material viscosity.
• Rotary evaporators are mainly used for concentration, crystallization, drying, separation, and solvent recovery in the chemical, and biopharmaceutical industries.
